Reduced Electron Velocity Distribution Function using Monte-Carlo integration#
author: Louis Richard
Example to compute and plot reduced electron distributions from FPI (based on Khotyaintsev et al., 2020, PRL)
[1]:
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
from pyrfu import mms, pyrf
from pyrfu.plot import plot_spectr, plot_line
mms.db_init("/Volumes/mms")
Load IGRF coefficients ...
Load data#
Define time interval and spacecraft index#
[2]:
tint = ["2015-12-02T01:14:55.500", "2015-12-02T01:14:56.600"]
tint_long = ["2015-12-02T01:14:45.500", "2015-12-02T01:15:02.500"]
mms_id = 4
Get magnetic field in spacecraft coordinates#
[3]:
b_dmpa = mms.get_data("b_dmpa_fgm_brst_l2", tint_long, mms_id)
[09-Jun-23 09:48:37] INFO: Loading mms4_fgm_b_dmpa_brst_l2...
Get electric field in spacecraft coordinates and spacecraft potential#
[4]:
e_dsl = mms.get_data("e_dsl_edp_brst_l2", tint_long, mms_id)
scpot = mms.get_data("v_edp_brst_l2", tint_long, mms_id)
[09-Jun-23 09:48:37] INFO: Loading mms4_edp_dce_dsl_brst_l2...
[09-Jun-23 09:48:37] INFO: Loading mms4_edp_scpot_brst_l2...
Get the electron velocity distribution skymap and the uncertainties (\(\delta f / f = 1/\sqrt{n}\) with \(n\) the number of counts)#
[5]:
vdf_e = mms.get_data("pde_fpi_brst_l2", tint_long, mms_id)
vdf_e_err = mms.get_data("pderre_fpi_brst_l2", tint_long, mms_id)
[09-Jun-23 09:48:38] INFO: Loading mms4_des_dist_brst...
[09-Jun-23 09:48:38] WARNING: /usr/local/lib/python3.10/site-packages/pyrfu/mms/get_dist.py:68: UserWarning: Epoch_plus_var/Epoch_minus_var units are not clear, assume s
warnings.warn(message)
[09-Jun-23 09:48:41] INFO: Loading mms4_des_disterr_brst...
Ignore phase-space density for one count level (also makes function faster)#
[6]:
vdf_e.data.data[vdf_e.data.data < 1.1 * vdf_e_err.data.data] = 0.0
Define coordinates#
[7]:
x_hat = pyrf.resample(b_dmpa, vdf_e)
x_hat.data /= pyrf.norm(pyrf.resample(b_dmpa, vdf_e)).data[:, np.newaxis]
y_hat = pyrf.resample(pyrf.cross(e_dsl, b_dmpa), vdf_e)
y_hat.data /= pyrf.norm(y_hat).data[:, np.newaxis]
z_hat = pyrf.cross(x_hat, y_hat)
[09-Jun-23 09:48:45] INFO: Using averages in resample
[09-Jun-23 09:48:45] INFO: Using averages in resample
[09-Jun-23 09:48:45] INFO: Using averages in resample
Create transformation matrix#
[8]:
xyz = np.transpose(np.stack([x_hat.data, y_hat.data, z_hat.data]), [1, 2, 0])
xyz = pyrf.ts_tensor_xyz(vdf_e.time.data, xyz)
Define velocity grid parallel to the magnetic field#
[9]:
vpara_lim = np.array([-10e3, 10e3], dtype=np.float64)
vg_para = np.linspace(vpara_lim[0], vpara_lim[1], 100)
Reduce distribution along the magnetic field#
[10]:
f1dpara = mms.reduce(
vdf_e, dim="1d", xyz=xyz, n_mc=200, vg=vg_para * 1e3, sc_pot=scpot, lower_e_lim=30.0
)
f1dpara = f1dpara.assign_coords(vx=f1dpara.vx.data / 1e3)
[09-Jun-23 09:48:45] INFO: Using averages in resample
100%|█████████████████████| 566/566 [00:20<00:00, 27.97it/s]
Plot#

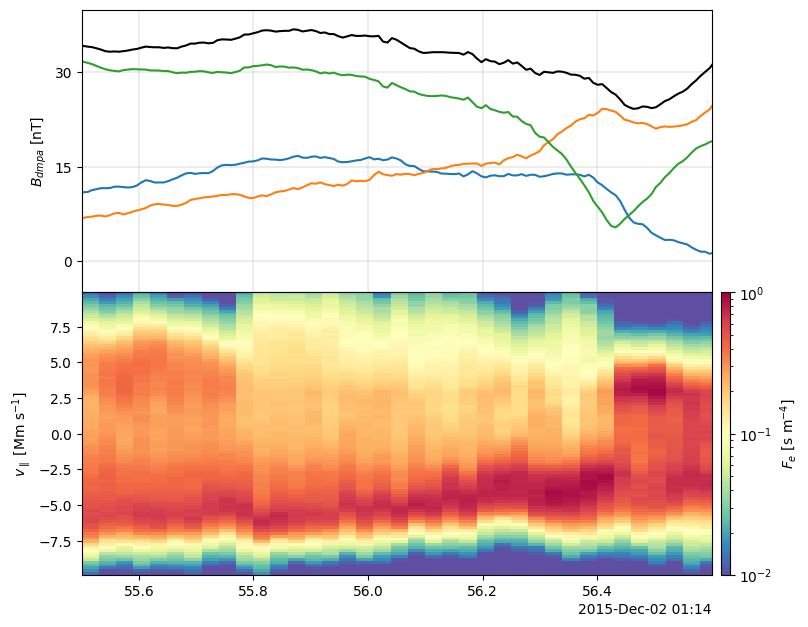

[11]:
f, axs = plt.subplots(2, sharex="all", figsize=(9, 6.5))
f.subplots_adjust(hspace=0.0, left=0.15, right=0.85, bottom=0.08, top=0.95)
plot_line(axs[0], b_dmpa)
plot_line(axs[0], pyrf.norm(b_dmpa), color="k")
axs[0].set_ylim([-5, 40])
axs[0].set_ylabel("$B_{dmpa}~[\mathrm{nT}]$")
axs[1], cax1 = plot_spectr(
axs[1], f1dpara, cscale="log", clim=[1e-2, 1e0], cmap="Spectral_r"
)
axs[1].set_ylim([-9.9, 9.9])
axs[1].set_ylabel("$v_\\parallel~[\\mathrm{Mm}~\\mathrm{s}^{-1}]$")
cax1.set_ylabel("$F_e~[\\mathrm{s}~\\mathrm{m}^{-4}]$")
axs[-1].set_xlim(pyrf.iso86012datetime64(np.array(tint)))
[11]:
(16771.05203125, 16771.05204398148)
2D projection of the ion velocity distribution functions#
Define times for 2D projection#
[12]:
t = [
"2015-12-02T01:15:02.020000000",
"2015-12-02T01:14:56.440",
"2015-12-02T01:14:56.380",
"2015-12-02T01:14:56.290",
"2015-12-02T01:14:55.810",
"2015-12-02T01:14:55.600",
]
Reduce ion distributions in 2d plane \((B,E\times B)\)#
[13]:
f2d = []
for t_ in t:
t_ = pyrf.extend_tint([t_, t_], [-0.06, 0.06])
tmp = mms.reduce(
pyrf.time_clip(vdf_e, t_),
xyz=pyrf.time_clip(xyz, t_),
dim="2d",
base="cart",
n_mc=200 * 5,
vg=vg_para * 1e3,
)
f2d.append(tmp.assign_coords(vx=tmp.vx.data / 1e3, vy=tmp.vy.data / 1e3))
100%|█████████████████████████| 4/4 [00:02<00:00, 1.96it/s]
100%|█████████████████████████| 4/4 [00:02<00:00, 1.94it/s]
100%|█████████████████████████| 4/4 [00:01<00:00, 2.06it/s]
100%|█████████████████████████| 4/4 [00:01<00:00, 2.04it/s]
100%|█████████████████████████| 4/4 [00:02<00:00, 1.86it/s]
100%|█████████████████████████| 4/4 [00:02<00:00, 1.74it/s]
Plot#
[14]:
f, axs = plt.subplots(2, 3, sharex="all", sharey="all", figsize=(9, 6.5))
f.subplots_adjust(wspace=0, hspace=0, left=0.11, right=0.97, bottom=0.1, top=0.85)
axs[0, 0], cax0 = plot_spectr(
axs[0, 0],
f2d[0].mean(axis=0),
cscale="log",
clim=[1e-10, 3e-7],
cmap="Spectral_r",
colorbar="top",
)
axs[0, 0].set_xlim([-1e4, 1e4])
axs[0, 0].set_ylim([-1e4, 1e4])
for f_2d, ax in zip(f2d[1:], axs.flatten()[1:]):
ax = plot_spectr(
ax,
f_2d.mean(axis=0),
cscale="log",
clim=[1e-10, 3e-7],
cmap="Spectral_r",
colorbar="none",
)
ax.set_xlim([-9.9, 9.9])
ax.set_ylim([-9.9, 9.9])
pos_axs02 = axs[0, 2].get_position()
pos_cax0 = cax0.get_position()
x0 = pos_cax0.x0
y0 = pos_cax0.y0 + 0.03
width = pos_axs02.x0 + pos_axs02.width - pos_cax0.x0
height = 0.02
cax0.set_position([x0, y0, width, height])
cax0.set_xlabel("$F_e~[\\mathrm{s}~\\mathrm{m}^{-5}]$")
f.supxlabel("$v_{\\parallel}~[\\mathrm{Mm}~\\mathrm{s}^{-1}]$")
f.supylabel("$v_{E\\times B}~[\\mathrm{Mm}~\\mathrm{s}^{-1}]$")
[14]:
Text(0.02, 0.5, '$v_{E\\times B}~[\\mathrm{Mm}~\\mathrm{s}^{-1}]$')
