Particle Pitch Angle Distribution#

author: Louis Richard
Calculate and plot electron and ion pitch angle distributions from particle brst data.
[1]:

%matplotlib inline
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt

from pyrfu import mms, pyrf
from pyrfu.plot import plot_line, plot_spectr, make_labels

Load IGRF coefficients ...

Define spacecraft index, data path and time interval#

[2]:

ic = 3  # Spacecraft number
mms.db_init("/Volumes/mms")
tint = ["2015-10-30T05:15:20.000", "2015-10-30T05:16:20.000"]

Load Data#

Particle distributions#

[3]:

# vdf_i = mms.get_data("pdi_fpi_brst_l2", tint, ic)
vdf_i, vdf_e = [mms.get_data(f"pd{s}_fpi_brst_l2", tint, ic) for s in ["i", "e"]]

[09-Jun-23 11:35:40] INFO: Loading mms3_dis_dist_brst...
[09-Jun-23 11:35:40] WARNING: /usr/local/lib/python3.10/site-packages/pyrfu/mms/get_dist.py:68: UserWarning: Epoch_plus_var/Epoch_minus_var units are not clear, assume s
  warnings.warn(message)

[09-Jun-23 11:35:41] INFO: Loading mms3_des_dist_brst...

Particle energy fluxes#

[4]:

def_omni_i, def_omni_e = [
    mms.get_data(f"def{s}_fpi_brst_l2", tint, ic) for s in ["i", "e"]
]

[09-Jun-23 11:35:47] INFO: Loading mms3_dis_energyspectr_omni_brst...
[09-Jun-23 11:35:47] WARNING: /usr/local/lib/python3.10/site-packages/pyrfu/mms/get_ts.py:58: UserWarning: Epoch_plus_var/Epoch_minus_var units are not clear, assume s
  warnings.warn(message)

[09-Jun-23 11:35:47] INFO: Loading mms3_des_energyspectr_omni_brst...

Particle moments#

[5]:

n_i, n_e = [mms.get_data(f"n{s}_fpi_brst_l2", tint, ic) for s in ["i", "e"]]
v_xyz_i, v_xyz_e = [mms.get_data(f"v{s}_gse_fpi_brst_l2", tint, ic) for s in ["i", "e"]]
t_xyz_i, t_xyz_e = [mms.get_data(f"t{s}_gse_fpi_brst_l2", tint, ic) for s in ["i", "e"]]

[09-Jun-23 11:35:47] INFO: Loading mms3_dis_numberdensity_brst...
[09-Jun-23 11:35:47] INFO: Loading mms3_des_numberdensity_brst...
[09-Jun-23 11:35:47] INFO: Loading mms3_dis_bulkv_gse_brst...
[09-Jun-23 11:35:47] INFO: Loading mms3_des_bulkv_gse_brst...
[09-Jun-23 11:35:47] WARNING: /usr/local/lib/python3.10/site-packages/pyrfu/mms/get_ts.py:58: UserWarning: Epoch_plus_var/Epoch_minus_var units are not clear, assume s
  warnings.warn(message)

[09-Jun-23 11:35:47] INFO: Loading mms3_dis_temptensor_gse_brst...
[09-Jun-23 11:35:47] WARNING: /usr/local/lib/python3.10/site-packages/pyrfu/mms/get_ts.py:58: UserWarning: Epoch_plus_var/Epoch_minus_var units are not clear, assume s
  warnings.warn(message)

[09-Jun-23 11:35:47] INFO: Loading mms3_des_temptensor_gse_brst...
[09-Jun-23 11:35:47] WARNING: /usr/local/lib/python3.10/site-packages/pyrfu/mms/get_ts.py:58: UserWarning: Epoch_plus_var/Epoch_minus_var units are not clear, assume s
  warnings.warn(message)

Other variables#

[6]:

b_xyz, b_gse = [mms.get_data(f"b_{cs}_fgm_brst_l2", tint, ic) for cs in ["dmpa", "gse"]]
scpot = mms.get_data("v_edp_brst_l2", tint, ic)

[09-Jun-23 11:35:48] INFO: Loading mms3_fgm_b_dmpa_brst_l2...
[09-Jun-23 11:35:48] INFO: Loading mms3_fgm_b_gse_brst_l2...
[09-Jun-23 11:35:48] INFO: Loading mms3_edp_scpot_brst_l2...

Compute parallel and perpendicular electron and ion temperatures#

[7]:

t_fac_i, t_fac_e = [
    mms.rotate_tensor(t_xyz, "fac", b_xyz, "pp") for t_xyz in [t_xyz_i, t_xyz_e]
]

t_para_i, t_para_e = [t_fac[:, 0, 0] for t_fac in [t_fac_i, t_fac_e]]
t_perp_i, t_perp_e = [t_fac[:, 1, 1] for t_fac in [t_fac_i, t_fac_e]]

[09-Jun-23 11:35:48] INFO: Using averages in resample
[09-Jun-23 11:35:48] INFO: Using averages in resample

Compute pitch-angle distributions#

Rebin VDFs to 64 energy channels#

[8]:

vdf_e64_i, vdf_e64_e = [mms.vdf_to_e64(vdf) for vdf in [vdf_i, vdf_e]]

Electron and ion pitch angle distribution#

[9]:

pad_i, pad_e = [
    mms.get_pitch_angle_dist(vdf, b_xyz, tint, angles=n)
    for vdf, n in zip([vdf_e64_i, vdf_e64_e], [18, 24])
]

[09-Jun-23 11:35:49] INFO: User defined number of pitch angles.
[09-Jun-23 11:35:49] INFO: Using averages in resample
[09-Jun-23 11:35:51] INFO: User defined number of pitch angles.
[09-Jun-23 11:35:51] INFO: Using averages in resample

PSD -> DEF#

[10]:

pad_def_i, pad_def_e = [mms.psd2def(pad) for pad in [pad_i, pad_e]]

Split in low energy, middle energy and high energy groups#

[11]:

def split_energy(pad, idx):
    coords = [pad.time.data, pad.theta.data[0, :]]
    dims = ["time", "theta"]
    pad_lowen = xr.DataArray(
        np.nanmean(pad.data[:, : idx[0], :], axis=1), coords=coords, dims=dims
    )
    pad_miden = xr.DataArray(
        np.nanmean(pad.data[:, idx[0] : idx[1], :], axis=1), coords=coords, dims=dims
    )
    pad_higen = xr.DataArray(
        np.nanmean(pad.data[:, idx[1] :, :], axis=1), coords=coords, dims=dims
    )

    energy = pad.energy.data[0, :]
    e_int = {
        "lowen": "{:6.2f} eV - {:6.2f} eV".format(energy[0], energy[idx[0] - 1]),
        "miden": "{:6.2f} eV - {:6.2f} eV".format(energy[idx[0]], energy[idx[1] - 1]),
        "higen": "{:6.2f} eV - {:6.2f} eV".format(energy[idx[1]], energy[-1]),
    }
    return pad_lowen, pad_miden, pad_higen, e_int


pad_lowen_i, pad_miden_i, pad_higen_i, e_int_i = split_energy(pad_def_i, [21, 42])
pad_lowen_e, pad_miden_e, pad_higen_e, e_int_e = split_energy(pad_def_e, [21, 42])

[09-Jun-23 11:36:20] WARNING: /var/folders/2t/0_80h219537d9f7j3ytlqtgh0000gn/T/ipykernel_37994/393131314.py:5: RuntimeWarning: Mean of empty slice
  np.nanmean(pad.data[:, : idx[0], :], axis=1), coords=coords, dims=dims

[09-Jun-23 11:36:20] WARNING: /var/folders/2t/0_80h219537d9f7j3ytlqtgh0000gn/T/ipykernel_37994/393131314.py:8: RuntimeWarning: Mean of empty slice
  np.nanmean(pad.data[:, idx[0] : idx[1], :], axis=1), coords=coords, dims=dims

[09-Jun-23 11:36:20] WARNING: /var/folders/2t/0_80h219537d9f7j3ytlqtgh0000gn/T/ipykernel_37994/393131314.py:11: RuntimeWarning: Mean of empty slice
  np.nanmean(pad.data[:, idx[1] :, :], axis=1), coords=coords, dims=dims

Plot#

[12]:

legend_options = dict(frameon=False, loc="upper left", bbox_to_anchor=(1.0, 1.0))

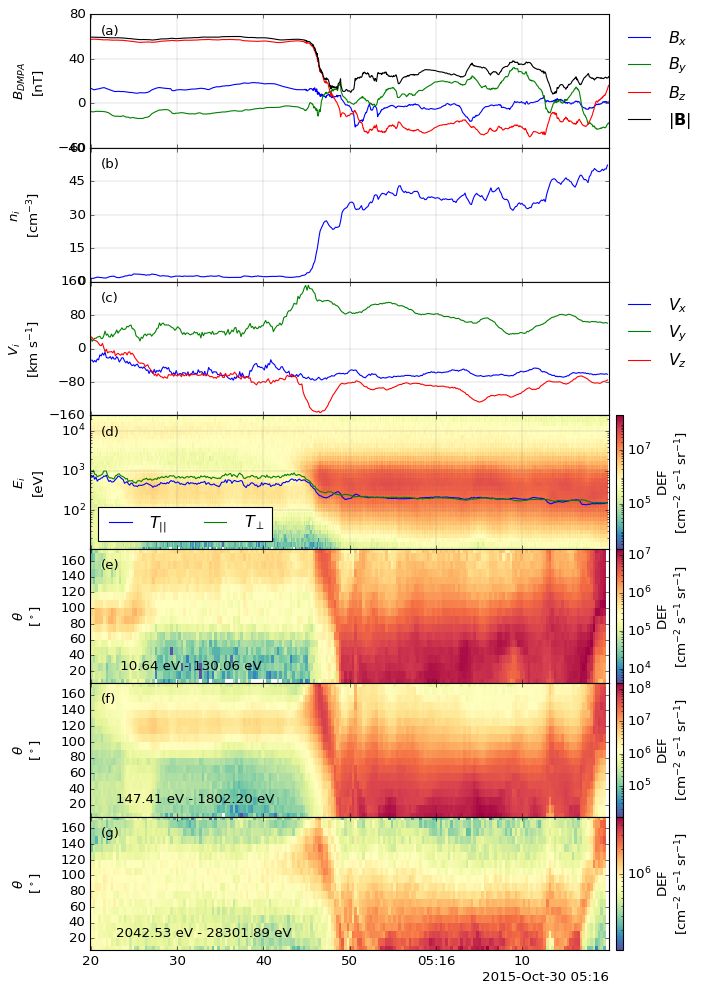

Plot Ion data#

[13]:

f, axs = plt.subplots(7, sharex="all", figsize=(9, 13))
f.subplots_adjust(hspace=0, left=0.1, right=0.82, bottom=0.05, top=0.95)

plot_line(axs[0], b_xyz)
plot_line(axs[0], pyrf.norm(b_xyz), color="k")
axs[0].set_ylabel("$B_{DMPA}$" + "\n" + "[nT]")
axs[0].legend(["$B_{x}$", "$B_{y}$", "$B_{z}$", "$|\\mathbf{B}|$"], **legend_options)

plot_line(axs[1], n_i)
axs[1].set_ylabel("$n_{i}$" + "\n" + "[cm$^{-3}$]")

plot_line(axs[2], v_xyz_i)
axs[2].set_ylabel("$V_{i}$" + "\n" + "[km s$^{-1}$]")
axs[2].legend(["$V_{x}$", "$V_{y}$", "$V_{z}$"], **legend_options)

axs[3], caxs3 = plot_spectr(
    axs[3], def_omni_i, yscale="log", cscale="log", cmap="Spectral_r", clim=[2e3, 2e8]
)
plot_line(axs[3], t_para_i)
plot_line(axs[3], t_perp_i)
axs[3].set_yscale("log")
axs[3].set_ylabel("$E_i$" + "\n" + "[eV]")
caxs3.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[3].legend(["$T_{||}$", "$T_{\perp}$"], ncol=2, loc="lower left", frameon=True)

axs[4], caxs4 = plot_spectr(axs[4], pad_lowen_i, cscale="log", cmap="Spectral_r")
axs[4].set_ylabel("$\\theta$" + "\n" + "[$^\\circ$]")
caxs4.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[4].text(0.05, 0.1, e_int_i["lowen"], transform=axs[4].transAxes)

axs[5], caxs5 = plot_spectr(axs[5], pad_miden_i, cscale="log", cmap="Spectral_r")
axs[5].set_ylabel("$\\theta$" + "\n" + "[$^\\circ$]")
caxs5.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[5].text(0.05, 0.1, e_int_i["miden"], transform=axs[5].transAxes)

axs[6], caxs6 = plot_spectr(axs[6], pad_higen_i, cscale="log", cmap="Spectral_r")
axs[6].set_ylabel("$\\theta$" + "\n" + "[$^\\circ$]")
caxs6.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[6].text(0.05, 0.1, e_int_i["higen"], transform=axs[6].transAxes)

make_labels(axs, [0.02, 0.85])

f.align_ylabels(axs)

[09-Jun-23 11:36:21] INFO: Substituting symbol \perp from STIXGeneral
[09-Jun-23 11:36:21] INFO: Substituting symbol \perp from STIXGeneral
[09-Jun-23 11:36:23] INFO: Substituting symbol \perp from STIXGeneral
[09-Jun-23 11:36:23] INFO: Substituting symbol \perp from STIXGeneral
../../_images/examples_01_mms_example_mms_particle_pad_27_1.png

Plot Electron data#

[14]:

f, axs = plt.subplots(7, sharex="all", figsize=(9, 13))
f.subplots_adjust(hspace=0, left=0.1, right=0.82, bottom=0.05, top=0.95)

plot_line(axs[0], b_xyz)
plot_line(axs[0], pyrf.norm(b_xyz), color="k")
axs[0].set_ylabel("$B_{DMPA}$" + "\n" + "[nT]")
axs[0].legend(["$B_{x}$", "$B_{y}$", "$B_{z}$", "$|\\mathbf{B}|$"], **legend_options)

plot_line(axs[1], n_i)
axs[1].set_ylabel("$n_{i}$" + "\n" + "[cm$^{-3}$]")

plot_line(axs[2], v_xyz_e)
axs[2].set_ylabel("$V_{e}$" + "\n" + "[km s$^{-1}$]")
axs[2].legend(["$V_{x}$", "$V_{y}$", "$V_{z}$"], **legend_options)

axs[3], caxs3 = plot_spectr(
    axs[3], def_omni_e, yscale="log", cscale="log", cmap="Spectral_r"
)
plot_line(axs[3], t_para_e)
plot_line(axs[3], t_perp_e)
axs[3].set_ylabel("$E_e$" + "\n" + "[eV]")
caxs3.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[3].legend(["$T_{||}$", "$T_{\perp}$"], ncol=2, loc="upper right", frameon=True)

axs[4], caxs4 = plot_spectr(axs[4], pad_lowen_e, cscale="log", cmap="Spectral_r")
axs[4].set_ylabel("$\\theta$" + "\n" + "[$^\\circ$]")
caxs4.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[4].text(0.05, 0.1, e_int_e["lowen"], transform=axs[4].transAxes)

axs[5], caxs5 = plot_spectr(axs[5], pad_miden_e, cscale="log", cmap="Spectral_r")
axs[5].set_ylabel("$\\theta$" + "\n" + "[$^\\circ$]")
caxs5.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[5].text(0.05, 0.1, e_int_e["miden"], transform=axs[5].transAxes)

axs[6], caxs6 = plot_spectr(axs[6], pad_higen_e, cscale="log", cmap="Spectral_r")
axs[6].set_ylabel("$\\theta$" + "\n" + "[$^\\circ$]")
caxs6.set_ylabel(
    "$\\mathrm{DEF}$"
    + "\n"
    + "$[\\mathrm{cm}^{-2}~\\mathrm{s}^{-1}~\\mathrm{sr}^{-1}]$"
)
axs[6].text(0.05, 0.1, e_int_e["higen"], transform=axs[6].transAxes)

make_labels(axs, [0.02, 0.85])

f.align_ylabels(axs)

[09-Jun-23 11:36:24] INFO: Substituting symbol \perp from STIXGeneral
[09-Jun-23 11:36:24] INFO: Substituting symbol \perp from STIXGeneral
[09-Jun-23 11:36:26] INFO: Substituting symbol \perp from STIXGeneral
[09-Jun-23 11:36:26] INFO: Substituting symbol \perp from STIXGeneral
../../_images/examples_01_mms_example_mms_particle_pad_29_1.png
