Reduced Ion Velocity Distribution Function \(f_i(v_\parallel)\) using Monte-Carlo integration#
author: Louis Richard
Example to compute and plot reduced ion distributions from FPI
[1]:
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
from pyrfu import mms, pyrf
from pyrfu.plot import plot_spectr, plot_line, use_pyrfu_style
use_pyrfu_style(usetex=True)
Load IGRF coefficients ...
Load data#
Define time interval and spacecraft index#
[2]:
mms.db_init(default="local", local="/Volumes/mms")
tint = ["2017-08-04T09:00:00", "2017-08-04T09:02:28"]
mms_id = 1
[29-Jan-26 16:34:59] INFO: Updating MMS data access configuration in /Users/louisr/Dropbox/Documents/irfu-python/.venv/lib/python3.14/site-packages/pyrfu/mms/config.json...
[29-Jan-26 16:34:59] INFO: Updating MMS SDC credentials in /Users/louisr/.config/python_keyring...
Get the magnetic field#
[3]:
b_dmpa = mms.get_data("b_dmpa_fgm_brst_l2", tint, mms_id)
[29-Jan-26 16:34:59] INFO: Loading mms1_fgm_b_dmpa_brst_l2...
[ ]:
[4]:
sc_pot = mms.get_data("v_edp_brst_l2", tint, mms_id)
[29-Jan-26 16:34:59] INFO: Loading mms1_edp_scpot_brst_l2...
Get spacecraft attitude (for conversion between Geocentric Solar Ecliptic to spacecrat coordinates)#
[5]:
defatt = mms.load_ancillary("defatt", tint, mms_id)
[29-Jan-26 16:35:01] INFO: Loading ancillary defatt files...
Get the ion velocity distribution skymap and the uncertainties (\(\delta f / f = 1/\sqrt{n}\) with \(n\) the number of counts)#
[6]:
vdf_i = mms.get_data("pdi_fpi_brst_l2", tint, mms_id)
vdf_i_err = mms.get_data("pderri_fpi_brst_l2", tint, mms_id)
[29-Jan-26 16:35:05] INFO: Loading mms1_dis_dist_brst...
[29-Jan-26 16:35:05] INFO: Loading mms1_dis_disterr_brst...
Define the coordinates system for projection of the distribution function#
x is along the local magnetic field
y and z are arbitrarly constructed perpandicular to x with z most aligned with spacecraft spin axis
[7]:
x_hat = pyrf.resample(b_dmpa, vdf_i)
x_hat.data /= pyrf.norm(x_hat).data[:, np.newaxis]
z_hat = pyrf.ts_vec_xyz(
vdf_i.time.data, np.array([0, 0, 1]) * np.ones((len(vdf_i.time), 3))
)
y_hat = pyrf.cross(z_hat, x_hat)
y_hat.data /= pyrf.norm(y_hat).data[:, np.newaxis]
z_hat = pyrf.cross(x_hat, y_hat)
z_hat.data /= pyrf.norm(z_hat).data[:, np.newaxis]
xyz = np.transpose(np.stack([x_hat.data, y_hat.data, z_hat.data]), [1, 2, 0])
xyz = pyrf.ts_tensor_xyz(vdf_i.time.data, xyz)
Define velocity grid along the three vectors#
[8]:
vpara_lim = np.array([-2e3, 2e3], dtype=np.float64)
vg_para = np.linspace(vpara_lim[0], vpara_lim[1], 100)
Reduce the distributions#
[9]:
f1dpara = mms.reduce(
vdf_i,
dim="1d",
xyz=xyz,
n_mc=200,
vg=vg_para * 1e3,
lower_e_lim=30.0,
sc_pot=sc_pot,
)
f1dpara = f1dpara.assign_coords(vx=f1dpara.vx.data / 1e3)
100%|█████████████████████| 987/987 [00:12<00:00, 78.71it/s]
Plot#
[10]:
f, axs = plt.subplots(2, sharex="all", figsize=(9, 6.5))
f.subplots_adjust(hspace=0.0, left=0.15, right=0.85, bottom=0.08, top=0.95)
plot_line(axs[0], b_dmpa)
plot_line(axs[0], pyrf.norm(b_dmpa), color="k")
axs[0].set_ylim([-5, 40])
axs[0].set_ylabel("$B_{dmpa}~[\mathrm{nT}]$")
axs[1], cax1 = plot_spectr(
axs[1], f1dpara, cscale="log", clim=[1e-2, 2e0], cmap="Spectral_r"
)
axs[1].set_ylim([-2, 2])
axs[1].set_ylabel("$v_\\parallel~[\\mathrm{Mm}~\\mathrm{s}^{-1}]$")
cax1.set_ylabel("$F_i~[\\mathrm{s}~\\mathrm{m}^{-4}]$")
axs[-1].set_xlim(pyrf.iso86012datetime64(np.array(tint)))
[29-Jan-26 16:35:18] WARNING: <>:6: SyntaxWarning: "\m" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\m"? A raw string is also an option.
[29-Jan-26 16:35:18] WARNING: <>:6: SyntaxWarning: "\m" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\m"? A raw string is also an option.
[29-Jan-26 16:35:18] WARNING: /var/folders/z6/4tzcn4qs67j8glvrfvkzlkg80000gn/T/ipykernel_79820/2824225912.py:6: SyntaxWarning: "\m" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\m"? A raw string is also an option.
axs[0].set_ylabel("$B_{dmpa}~[\mathrm{nT}]$")
[10]:
(np.float64(17382.375), np.float64(17382.376712962963))
[ ]:
Plot a 1D reduced distribution and fit#
Select the ion distribution#
[11]:
t_sel = np.datetime64("2017-08-04T09:01:08.105711000")
f1dpara_sel = f1dpara.sel(time=t_sel)
Define Maxwellian and two components models#
[12]:
from scipy import constants, optimize
# Define Maxwellian distribution function
def maxwellian(v, n, u, t):
m_i = constants.proton_mass
v_th = np.sqrt(2 * constants.electron_volt * t / m_i)
coeff = n / (np.sqrt(np.pi) * v_th)
exponent = -((v - u) ** 2) / v_th**2
return coeff * np.exp(exponent)
# Define two-component Maxwellian model
def two_components(v, n1, u1, t1, n2, u2, t2):
return maxwellian(v, n1, u1, t1) + maxwellian(v, n2, u2, t2)
Fit the reduced distribution#
[13]:
# Fit the two-component Maxwellian model to the data
popt, _ = optimize.curve_fit(
two_components,
f1dpara.vx.data * 1e6,
f1dpara.data[454, :],
p0=[0.2e6, -1100e3, 520, 1e6, 100e3, 1700],
)
# Compute the fitted components
core = maxwellian(f1dpara.vx.data * 1e6, *popt[3:])
beam = maxwellian(f1dpara.vx.data * 1e6, *popt[:3])
tota = two_components(f1dpara.vx.data * 1e6, *popt)
Plot#
[131]:
[14]:

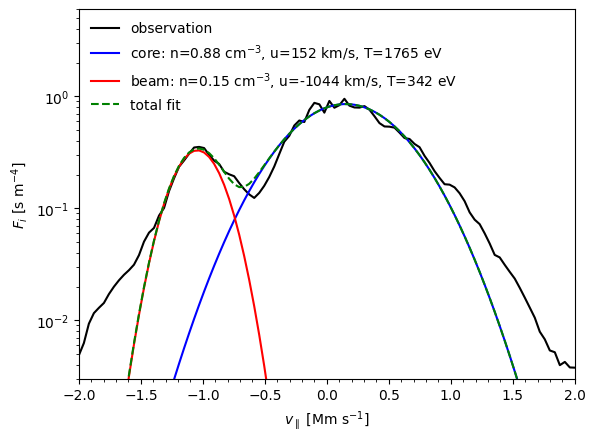

f, ax = plt.subplots(1)
ax.semilogy(f1dpara.vx.data, f1dpara.data[454, :], color="k", label="observation")
ax.semilogy(
f1dpara.vx.data,
core,
color="b",
label=f"core: n={popt[3]*1e-6:.2f} cm$^{{-3}}$, u={popt[4]*1e-3:.0f} km/s, T={popt[5]:.0f} eV",
)
ax.semilogy(
f1dpara.vx.data,
beam,
color="r",
label=f"beam: n={popt[0]*1e-6:.2f} cm$^{{-3}}$, u={popt[1]*1e-3:.0f} km/s, T={popt[2]:.0f} eV",
)
ax.semilogy(f1dpara.vx.data, tota, color="g", linestyle="--", label="total fit")
ax.set_ylim([3e-3, 6e0])
ax.set_xlim([-2, 2])
ax.set_xlabel(r"$v_\parallel~[\mathrm{Mm}~\mathrm{s}^{-1}]$")
ax.set_ylabel(r"$F_i~[\mathrm{s}~\mathrm{m}^{-4}]$")
ax.legend(loc="upper left")
[14]:
<matplotlib.legend.Legend at 0x11b3592b0>
[ ]:
